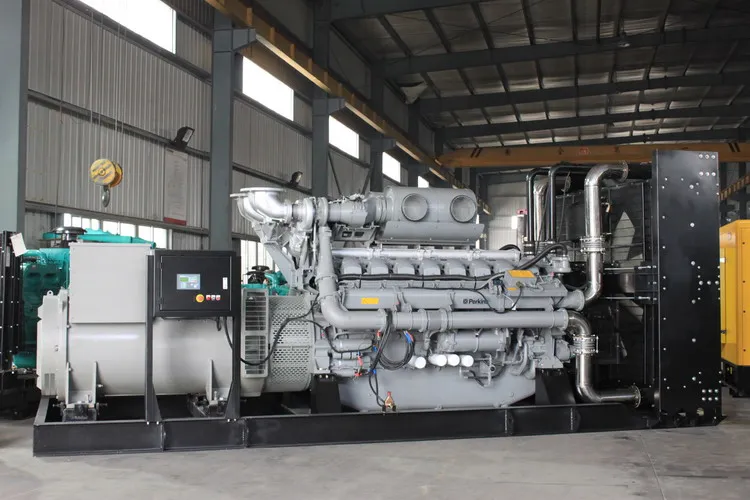

Daily Running High Quality Perkins Diesel Generator 1850kva 1480kw generator set with UK engine 4016TAG1A In Stock

Perkins Diesel Generator 1850kva
Perkins Diesel Generator 1850kva
Perkins Diesel Generator 1850kva
Perkins Diesel Generator 1850kva

Daily Running High Quality Perkins Diesel Generator 1850kva 1480kw generator set with UK engine 4016TAG1A In Stock

UK Perkins Diesel Generator 1850kva 1480kw With Engine 4016TAG1A

  • Item NO.:

    A1480
  • Order(MOQ):

    1
  • Payment:

    FOB
  • Market Price:

    $240000
  • price:

    $238000/SET
  • Product Origin:

    China
  • Color:

    customized
  • Shipping Port:

    Fujian, China
  • Lead Time:

    25days
  • Product weight:

    157000
Product Description

Daily Running High Quality Diesel Generator 1850kva 1480kw generator set with engine 4016TAG1A In Stock

Diesel Engine:

Engine
GENERAL ENGINE DATA
Engine manufacture
Perkins Engines Company Limited
Engine brand
Perkins
Engine model
4016TAG1A
Engine speed (rpm)
1500
Prime power
Gross engine power (KW)
1588
Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW)
1476
Cylinders
16-cylinder, 60° Vee
Cycle
4 stroke
Induction system
Turbocharged
Combustion system
Direct injection
Compression ratio
13:1 nominal
Bore * Stroke (mm)
160 * 190
Cubic capacity (Litre)
61.123
FUEL SYSTEM
Injection system
Direct
Governor type
electronic
Fuel Consumption (litre/hour)
Standby
424
Prime
383
Baseload
297
75% output power
277
50% output power
185
25% output power
102
COOLING SYSTEM
Total coolant capacity: Jacket Water (Litres)
engine only
95
engine and radiator
316
Thermostat operating range (°C)
71-85
Shutdown switch setting (°C)
96
LUBRICATION SYSTEM
Maximum sump capacity (liter)
214
Minimum sump capacity (liter)
147
Oil temperature (in rail)-Max. continuous operations (°C)
105
Oil pressure Minimum @80°C (kPa)
340
Shutdown switch - pressure setting (kPa)
193 (falling)
INDUCTION SYSTEM
Maximum air intake restriction of engine (mmH2O)
Clean filter
127
Dirty filter
380
Combustion air flow(standby/prime power) (m3/min)
140 / 132
EXHAUST SYSTEM
Back pressure for total system (mmH2O)
949
Exhaust gas temp. after turbo(standby/prime power)(°C)
439
Exhaust gas flow (standby/prime power) (m3/min
343
ELECTRICAL SYSTEM
Alternator voltage (volts)
24
Alternator output (amps)
55
Stater motor type (volts)
24
Starter motor power(kW)
16.4

AC Alternator:

ALTERNATOR
Alternator manufacturer
Leroy-somer Electro-technique (Fuzhou) Company Ltd.
Alternator brand
Leroysomer
Alternator model
LSA52.3S5
Control system
AREP
A.V.R.
Included
Voltage regulation
±1.0%
Insulation system
Class H
Protection
IP23
Rated power factor
0.8
Winding pitch
Two thirds
Winding leads
6
Frequency (Hz)
50
Voltage (V)
400
Phase
3
Output ratings (kVA/kW)
----------------Cont.H-40°C
1860/1488
----------------Standby-27°C
2050/1640
THF
<2%
TIF
<50
Max. overspeed (Rev/Min)
2250
Bearing
Single
Product Details

1.Deepsea, Smartgen Control panel

2.High quality 3P Circuit breaker and terminal output
3.Strong hoisting structure
4.Durable stainless steel hinges
5.High performance exhaust silencer
6.Radiator coolant refill

1.Assembled by Famous diesel engine and high quality branded alternator.

2.Radiator and fan with safety guard, or heat exchanger.
3.Heavy duty steel base frame with great capacity fuel tank for options.
4.Vibration damping supports between engine/alternator and base frame.
5.Heavy duty industrial type exhaust silencer with flexible bellow.
6.High capacity sealed lead acid battery with battery cable.
7.Intelligent control panel, Deepsea or Comap brand for options.

Open Type.

● Famous brand engine couple with high quality alternator
● Large size cooling radiator
● Heavy duty steel base frame
● Strong anti-vibration mat
● Standard free maintenance battery
● AC alternator for battery charger
● Heavy-duty air filter, oil filter, water filter
● Famous brand controller and breaker
● Optional fuel tank, silent canopy, ATS, synchronization panels.

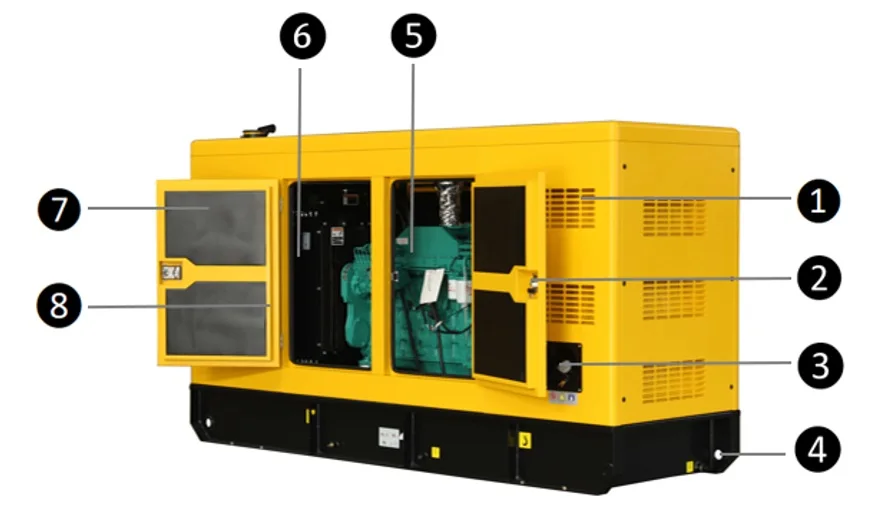

Silent Performance Features:

● More than 2mm thick steel to make the canopy.
● High quality paint materials and strict powder paint processing.
● large-scale impedance combined type silencer effectively reducing noise of the generator.
● Stainless steel door locks and hinges and 180° revolvable and disassemble door for easy maintenance.
● High quality soundproof and insulation materials could efficiently reduce noise.
● Transparent viewing window make the control panel clear at a glance.
● Lifting ear is mounted in the base frame for easy pull.
● Elegant appearance and reliable quality.
●From 10kva to 700kva we use normal silent canopy, more than 700kva we are using containerized canopy.
● ISO standard 20', 40' and 40HQ sea container canopy for options.
● Standard sea container canopy is easier for shipping.

AI Company

Advanced&Intelligent.

Xiamen Ai Power Technology Co.,Ltd, which is located in the beautiful tourism city of Xiamen city, Fujian Province, It is dedicated to becoming a comprehensive company for intelligent power and green energy supply.Our company aim to create a better life for the world by supplying better power solutions. Continually improving products' quality, friendly-use and durability is our long-term mission. We will make all the efforts to walk a long way to reach customers' greatest satisfaction.

Packing & Delivery
FAQ

1.What's our power capacity range of generator?

Answer: We can offer the range from 10kva~3000kva genset, diesel generator, gas generator, marine generator.

2. Besides power generator, what's your other product?
Answer: We also provide lighting tower, air compressor, ATS, synchronization system, switchgear, transformer, engine spareparts.

3. What's kind of generator type you produce?
Answer: open generators, silent power generators, super silent genset, trailer genset, movable electric generator, reefer generator.
4.What's your warranty?
Answer: One year or 1000 hours, which one comes first.
5.Can you use our logo?
Answer: Yes, we can use customer's logo instead of ours.
6. Can you accept small order?
Answer: Yes, we can accept trial order.
7. What's your delivery time?
Answer: Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
